USE
- GENIUS is a level monitor in atmospheric tanks.
- The level measurement is made measuring the static pressure of the liquid height through a tube into the tank.
- It allows to measure the level in rectangular and cylindrical, horizontal or vertical, tanks with a maximum height of 4 m.
- Level reading in height (mm or inches) or volume (litres or gallons)
- It is suitable for liquids with a maximum viscosity of 30 cSt.
* It is not suitable for ATEX classified zone installation. - PC communication with desktop software GKSuite or communication to DieselPlus cloud software.
- Communication to any PLC or external device via MODBUS RTU
TECHNICAL FEATURES:
- Power: 230 VAC · 110 VAC · 15-32 VDC
- IP-55 Protection
- Accuracy: ±1 % in height
- Resolution: 5 mm
COMPOSED OF

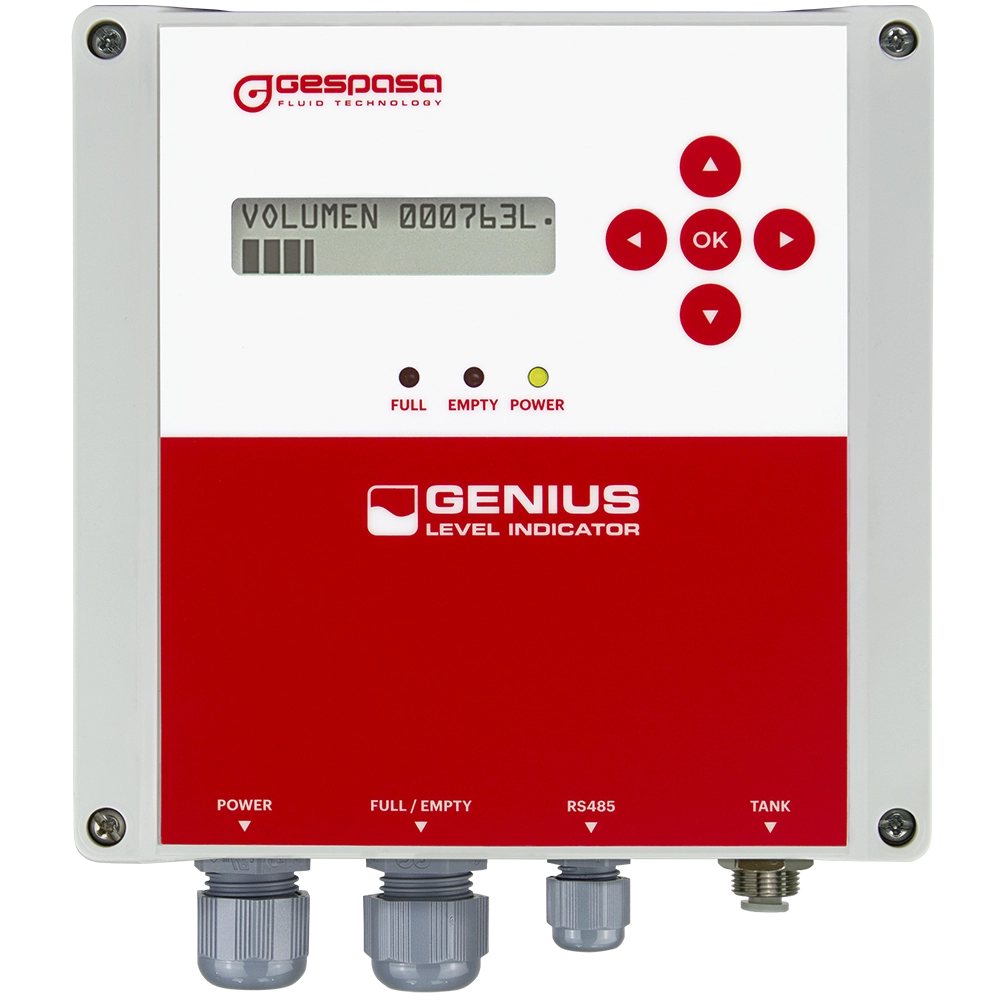

Control unit
- LCD display of 16x2 characters
- 5-key keyboard to access the kit menu
Indicator set
Tube to install on the tank
Connections and cables
- Cable 230 VAC 50/60 Hz · 110 VAC · 15-32 VDC
- Connection cable of the two outputs for full or overfilled tank alarm and empty or minimum level
- RS-485 communication cable
- Connection for the tube installed in the tank
Acoustic alarm in its inner of 90 dB and 2,400 Hz
Configuration of:
- Tank type and dimensions, calibration
- Level alarms
- Level reading type
- Measuring unit
- According to the programmed alarm levels, the control unit will activate or deactivate the contacts, acting as a remote switch for the alarm device operation or the connected control kit operation.
- PC communication kit through the RS-485 communication port
- Connection to PC or GK-7 controller or similar
Size and weight (approx.): - Size: 160x60x185 mm (length x width x height)
- Weight: 2.5 kg
