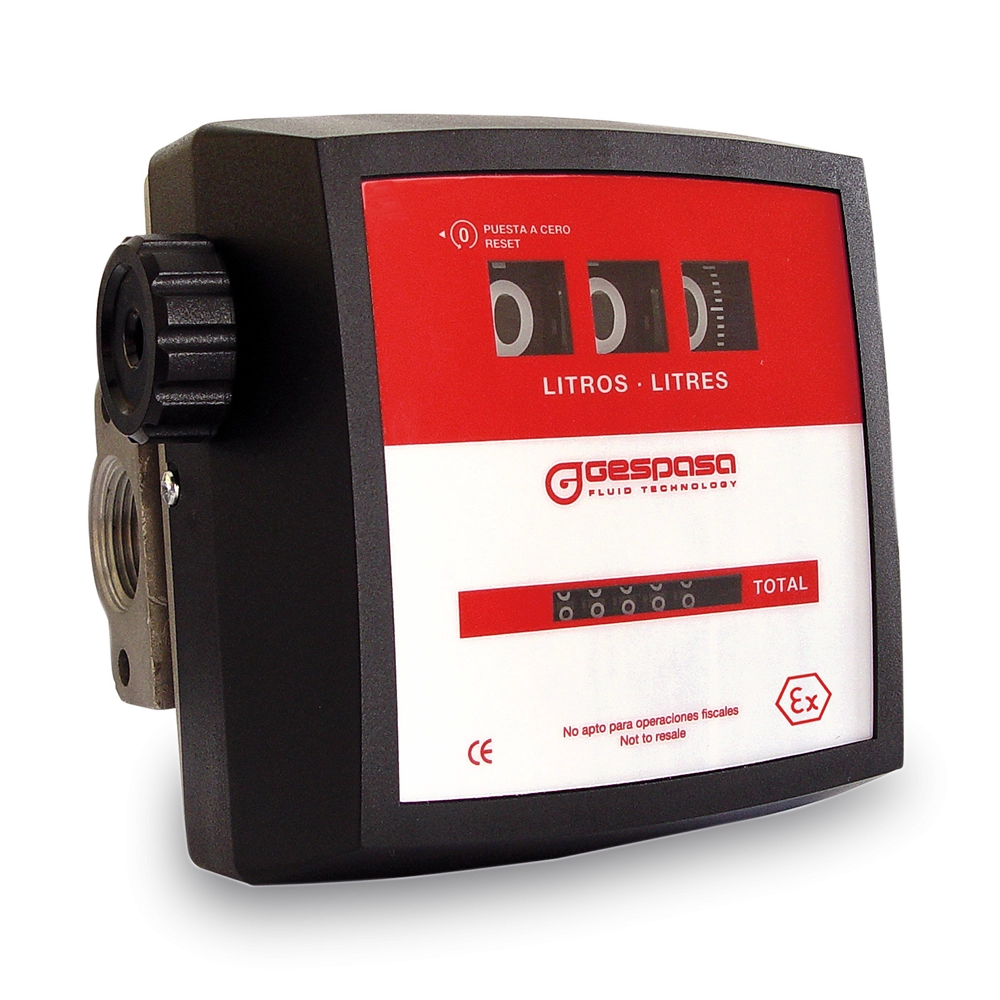

- Aluminium body
- Made of aluminium and high quality plastic materials. Its measuring chamber is fireproof of oscillant disc and it allows to transfer any type of hydrocarbon liquids (please, consult other liquids).
- Flow: 15-90 l/min
- Accuracy: ±1 %
- Partial indicator of 3 digits and totalizer of 6 digits
- Maximum operation pressure: 5 bar
- Resistance pressure: 15 bar
- Ambient temperature: -10 ºC / +60 ºC
- ATEX IIG Category
- Protection mode: own supply: Ex h IIB T5 Gb
- Polyamide + Fibreglass housing
- Inlet/outlet Connections: 1" GAS (BSP)
- Inlet connection through threads or flanges
- For private use, not suitable for fiscal operations
Size and weight (approx.):
- Size: 180x132x165 mm (length x width x height)
- Weight: 1,95 kg
